Project Description
Client: Ministry of Transportation and Public Works
Location: Jbeil Lebanon
Value: $15,388,308

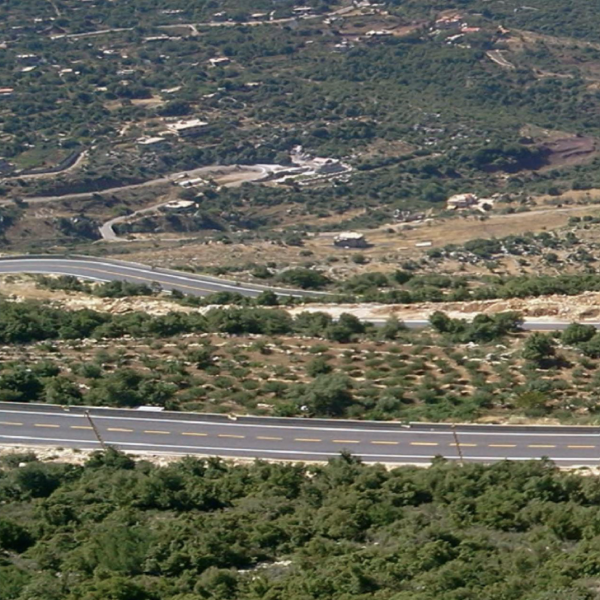

This project consists of the widening of a mountainous existing road with all related rock excavation, retaining walls, bridge execution and road construction.
This project is a road length 10Km, and a width of12 lm.
The basic quantities included cement stabilization of 23,000 m3.
Bituminous base course (BNS) of 100,000m2 and the asphalt-wearing course of135,000m2.
On locations where the embankment heights exceed 10m, 3m wide berms were constructed and protected with concrete and anchors to stabilize the sloping ground.
The overpass, spanning 64.80m, is 70.80m long and 11.20m wide bridge.
The carriageway.
Excavations accounted for 800m3, concreting 810m3 and reinforcing for 135 -Ton
Sub-base, base course and two bituminous layers.
Performed Works
- 27,000 m3 of Excavation in different type of soil.
- Paying pavement in full with
- Execution of storm water system including pipes and channels.
- Execution of water supply network all over the road.
- Execution of telephone civil works network.
- Electrical network.
- Execution of different height retaining walls from 2m to 13m.
- Execution of 200 lm bridge.
- Shot-crete and nails for slope stabilization.

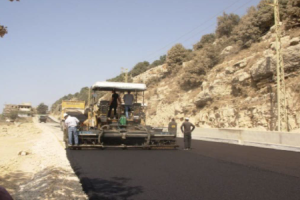

- Signs and road marking.
- Ciment stabilization of 23,000m2
